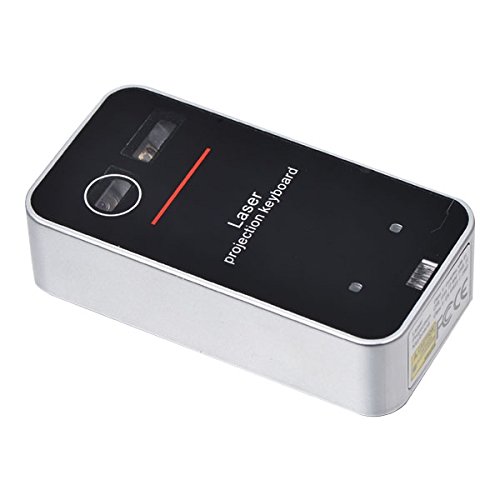

Wireless Bluetooth Virtual Laser Projection Keyboard Ultra Portable Mini Keyboard for
Cell Phone + Tablet + Laptop
For Bulk Buy
Contact us at
+9716499946
+9810115955
support@custompendrives.com

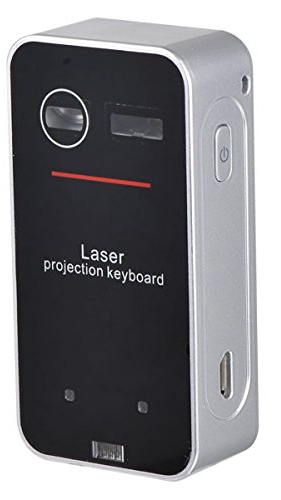

Product Overview

This projection keyboard will work via Bluetooth HID. connection to main devices, like Tablet PC, Smartphone, Desktop PC and Video game .

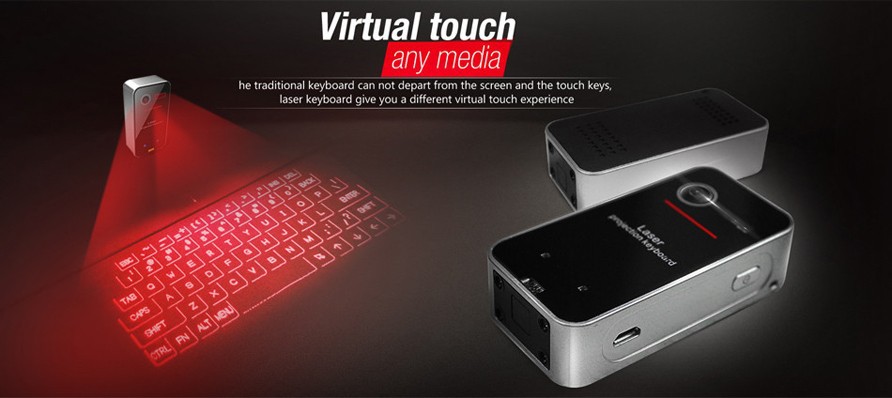

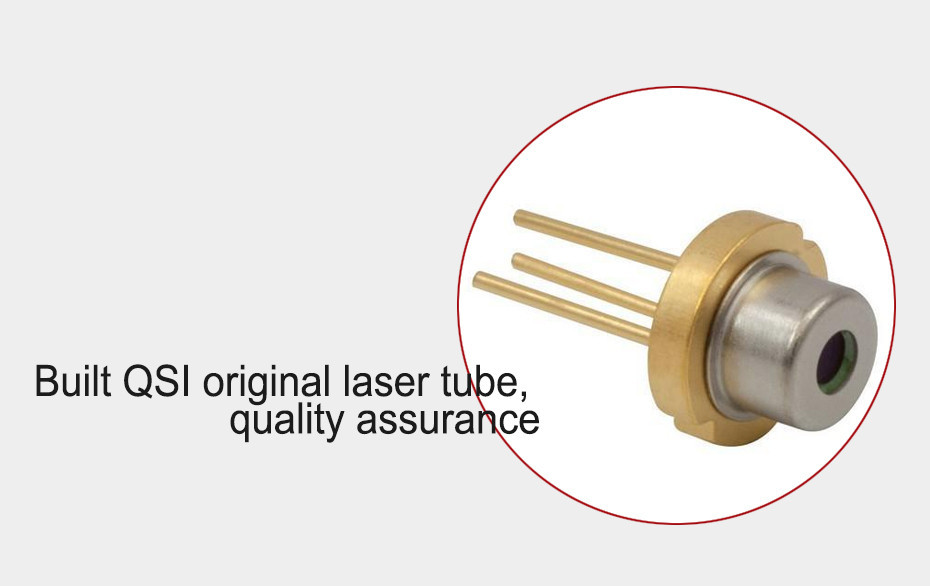

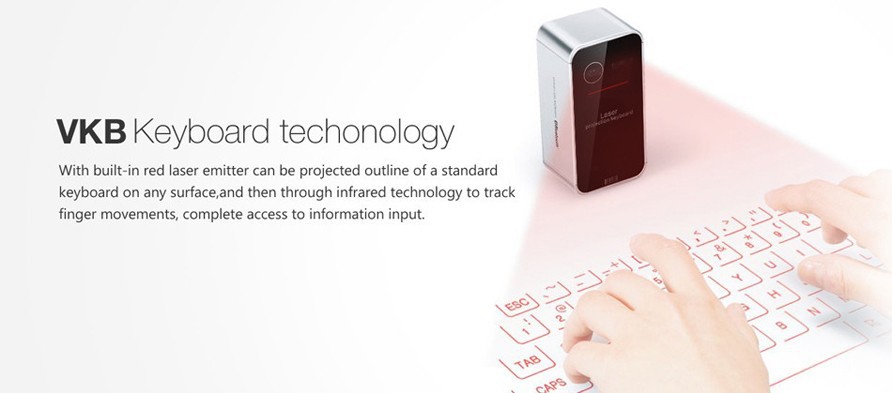

As a new input device, using the built-in infrared laser transmitter to project the standard keyboard on the working surface , you can locate the click position and input the information by the method of optical identification.

Without physical keyboard, small size, easy to carry, this projection keyboard can adapt to most of the working environment.
Product Features

* English QWERTY keyboard layout.

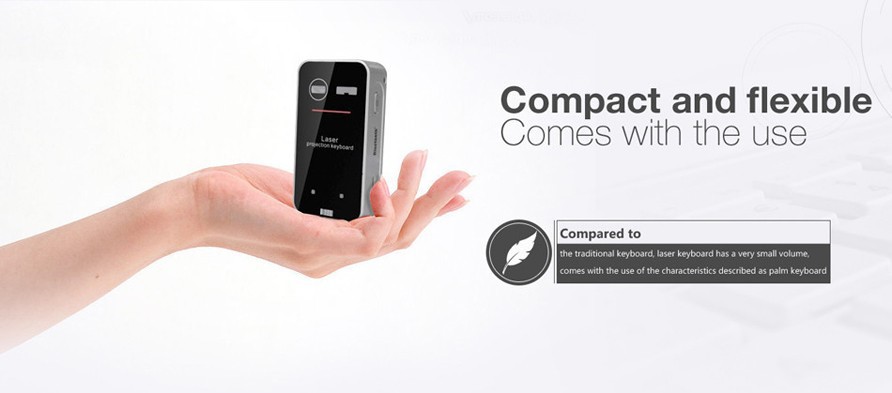

* Truly portable design:perfect for on-the-go

* Full size key pitch and shortcut keys for ease of operation

* Superior durability (No moving component inside)

* Built-in Lithium-ion Polymer rechargeable battery for  mobility and convenience

* Compatible with latest operating systems: Windows XP & later, Windows Phone 7 & later, iOS4 and later, Android 2.1 and later, Mac OS X & later.

* No extra driver required

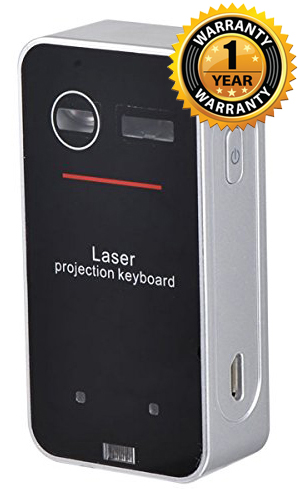

* 1 Year Warranty



How It Works

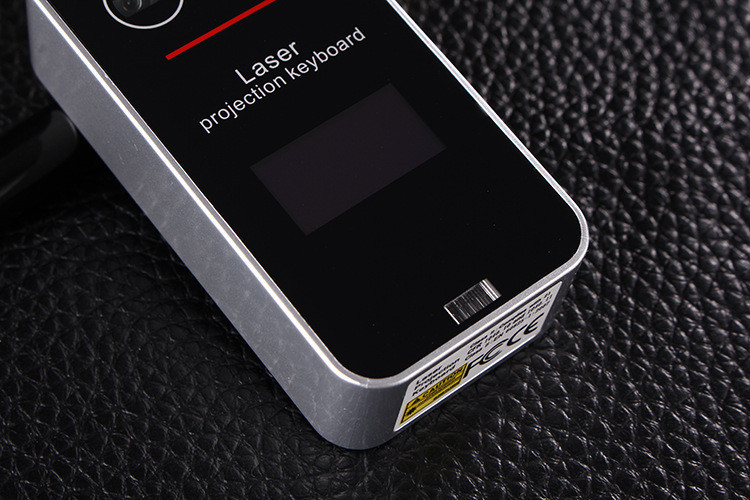

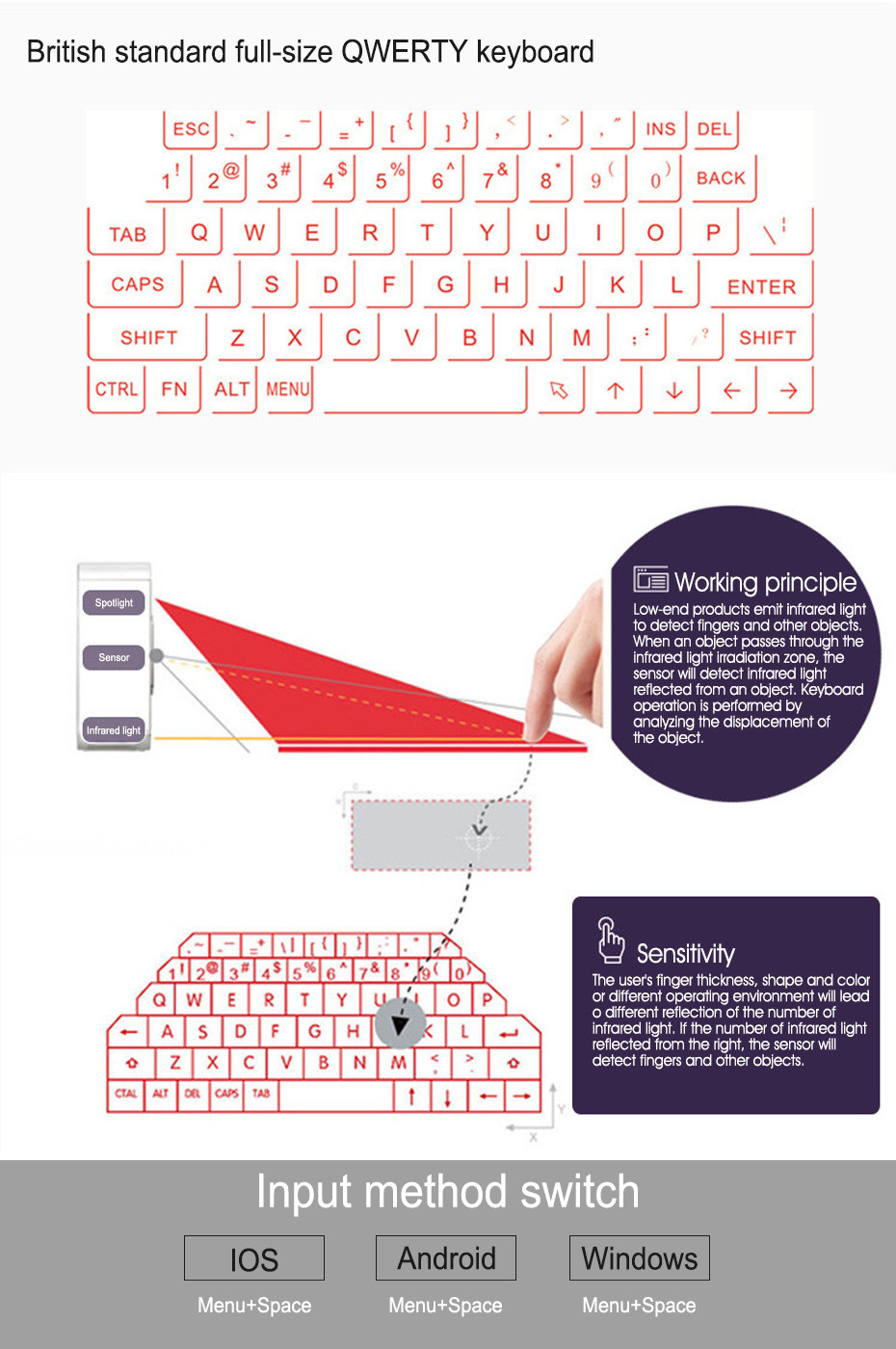

This product emits infrared light from the lower end of the product to detect objects such as fingers. When an object passes through the arc illuminated by the infrared light source, any infrared light reflecting off an object is detected by the sensor.

Information on the position and movement of the object is then analyzed to perform the product’s role as a keyboard.

Conditions To Avoid

1. Avoid direct sunlight.
2. Avoid low color temperature light source, such as tungsten, halogen, or incandescent lamp.
3. Avoid uneven or irregular surfaces. Place the product on flat surfaces.
4. Avoid a table or surface that is as transparent or reflective as glass or mirror.
5. Avoid placing any objects within the space between the main unit and the laser projected keyboard layout
Note

Because this product uses infrared rays, strong infrared radiation from direct or reflected sunlight or from tungsten (halogen or incandescent) lighting may cause operating error

Caution

Although this equipment is classified as Class 2 laser product, for your safety, do not directly expose your eyes to pattern projection beams orinfrared rays.

1. For safety reasons, be sure to use only the microUSB to USB cable specified for this product.
2. Make sure to fully charge the battery before using the product for the first time.
3. Battery charging times may vary slightly depending on the ambient temperature.
4. The battery may not be charged to 100 percent of its rated cell capacity even when the charging indicate LED goes out.
5. Using or storing the battery in high temperature, humidity and pressure environments may cause the battery to explode.
6. Since the battery is a consumable item, its storage capacity decreases gradually as time passes.

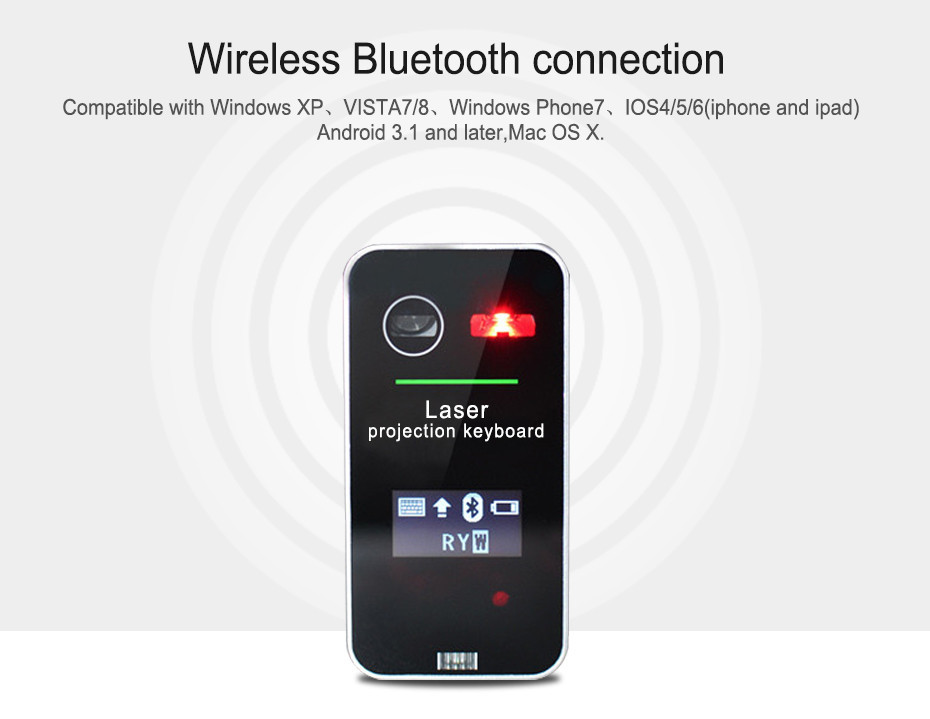

Connection Via Bluetooth

Connection via Bluetooth HID does not require installation of separate driver as long as the host device has HID compatibility.
Bluetooth 2.1 or higher required for connecting to some devices
Note:Projection Keyboard will automatically attempt to re-connect to the recently connected devices. If no previous device is found then it will listen for a new connection with any available HID compatible device.

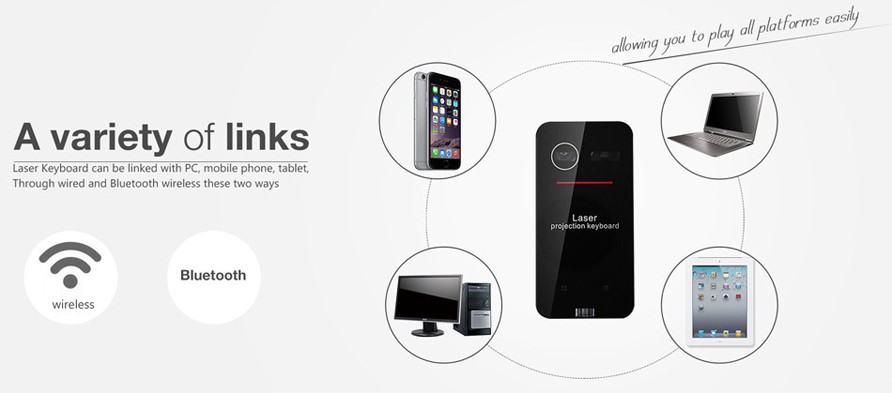

Bluetooth HID Compatible Devices:
* iOS4 and later
* Android 2.0 and later
* Windows XP/Vista/7/8 or higher
* Windows Phone 7/8 or higher
* Mac OS (using Keyboard only)
* Blackberry 10
* PS3

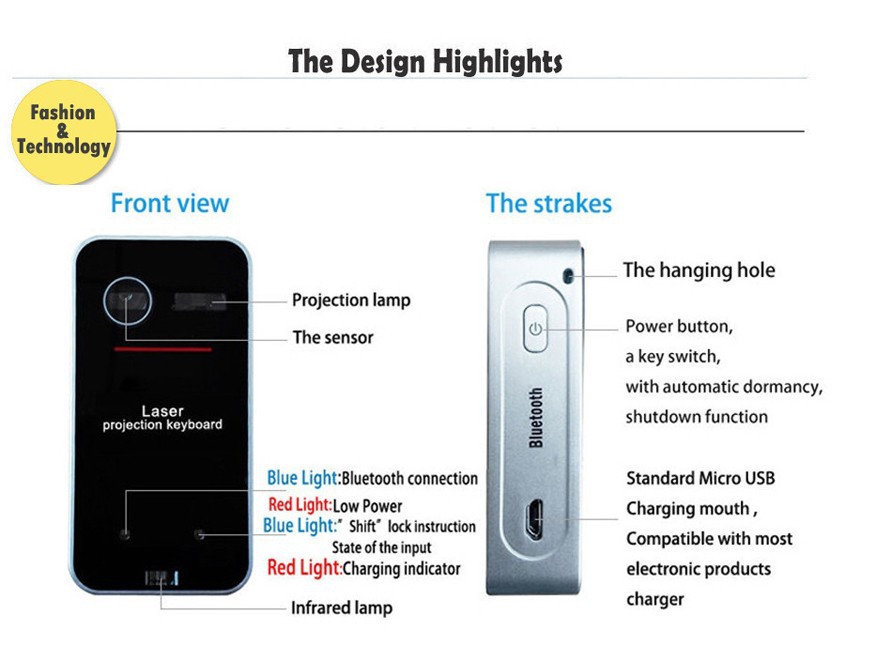

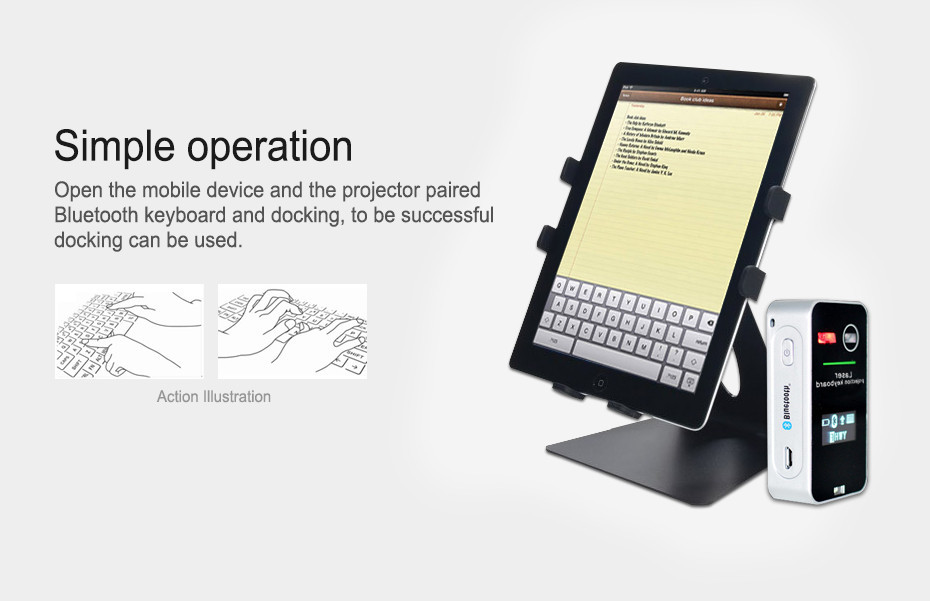

Bluetooth Connection Instruction

1. Power on Projection Keyboard
2. Left blue LED will be blinking indicating the Projection Keyboard is searching for a new device or previously paired devices within its proximity .     Projection Keyboard will automatically attempt to re-connect to the recently connected devices
3. On primary device,go to Bluetooth setting;search for Bluetooth devices.
4. When the device discovers “Laser projection keyboard”,tap to connect.
5. Upon successful pairing, the LED will stop blinking and go out.
